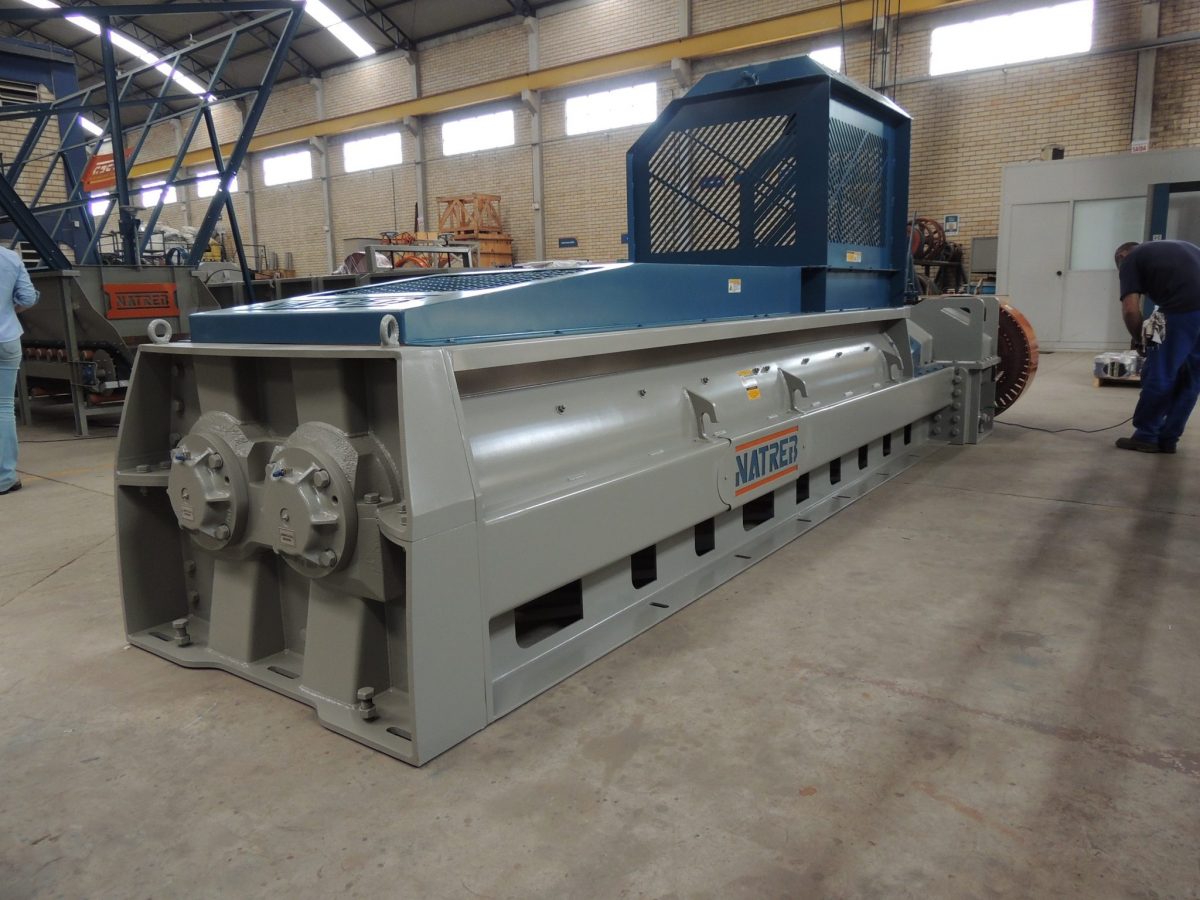

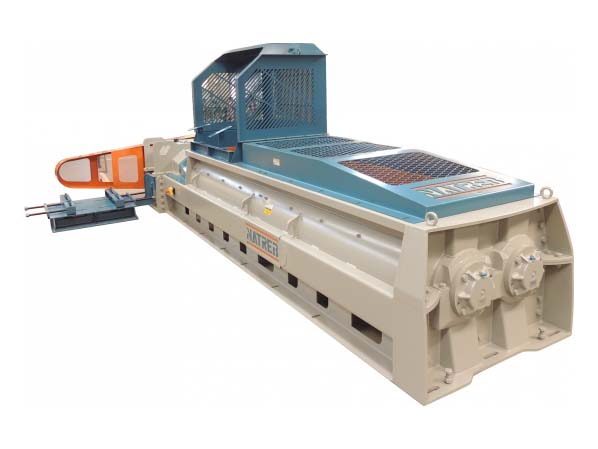

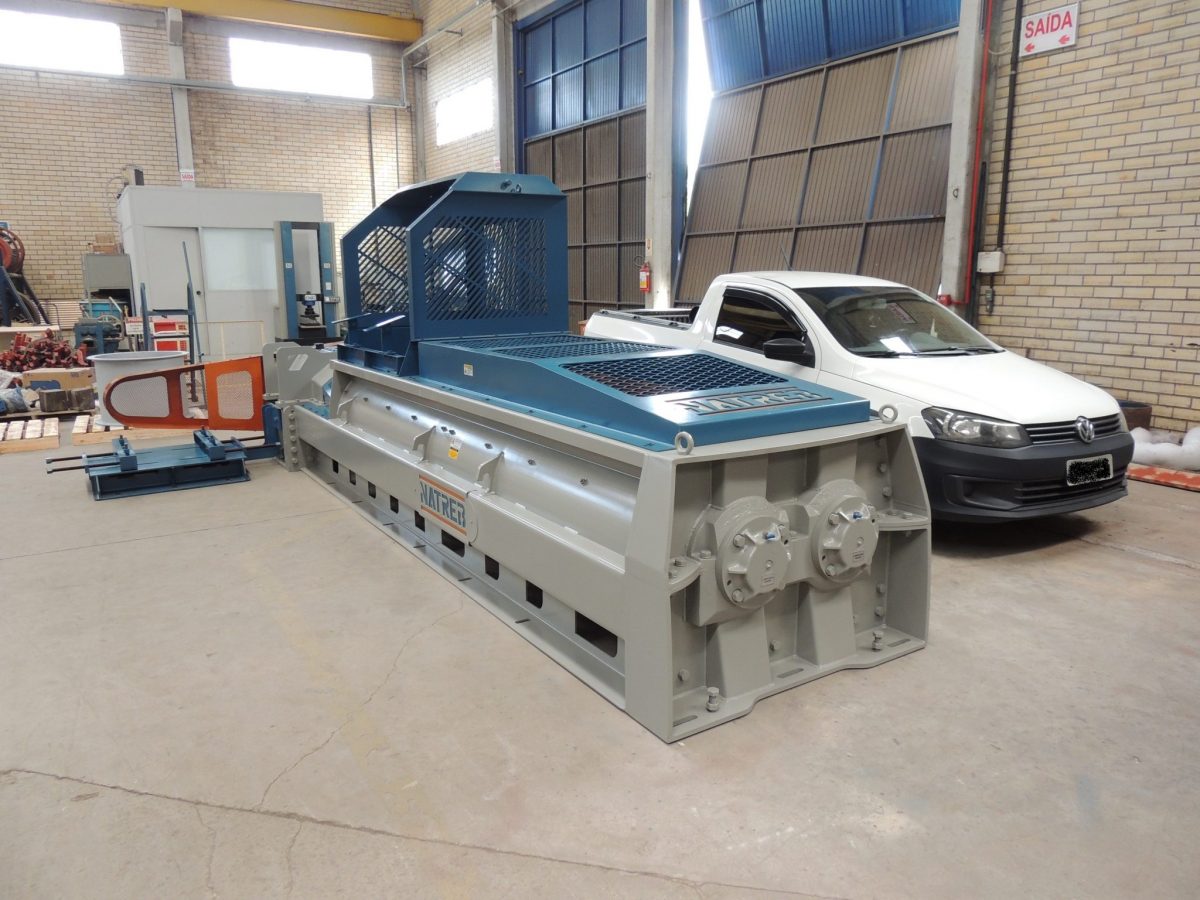

MTR-5 MIXER
Natreb mixers are ideal for those looking for a high-effort machine that is fast maintained and has high durability. The function of this equipment in the ceramic industry is to mix the different types of clay, both rested and crude, promoting the mixing of the different raw materials. The addition of water to correct the dampness of the dough is also done in the mixer. It has helical cylindrical gear reducer and electro-pneumatic clutch. Besides the ceramics, this machine has application in the treatment of residues and some kinds of mining.
Características / Detalhes Construtivos

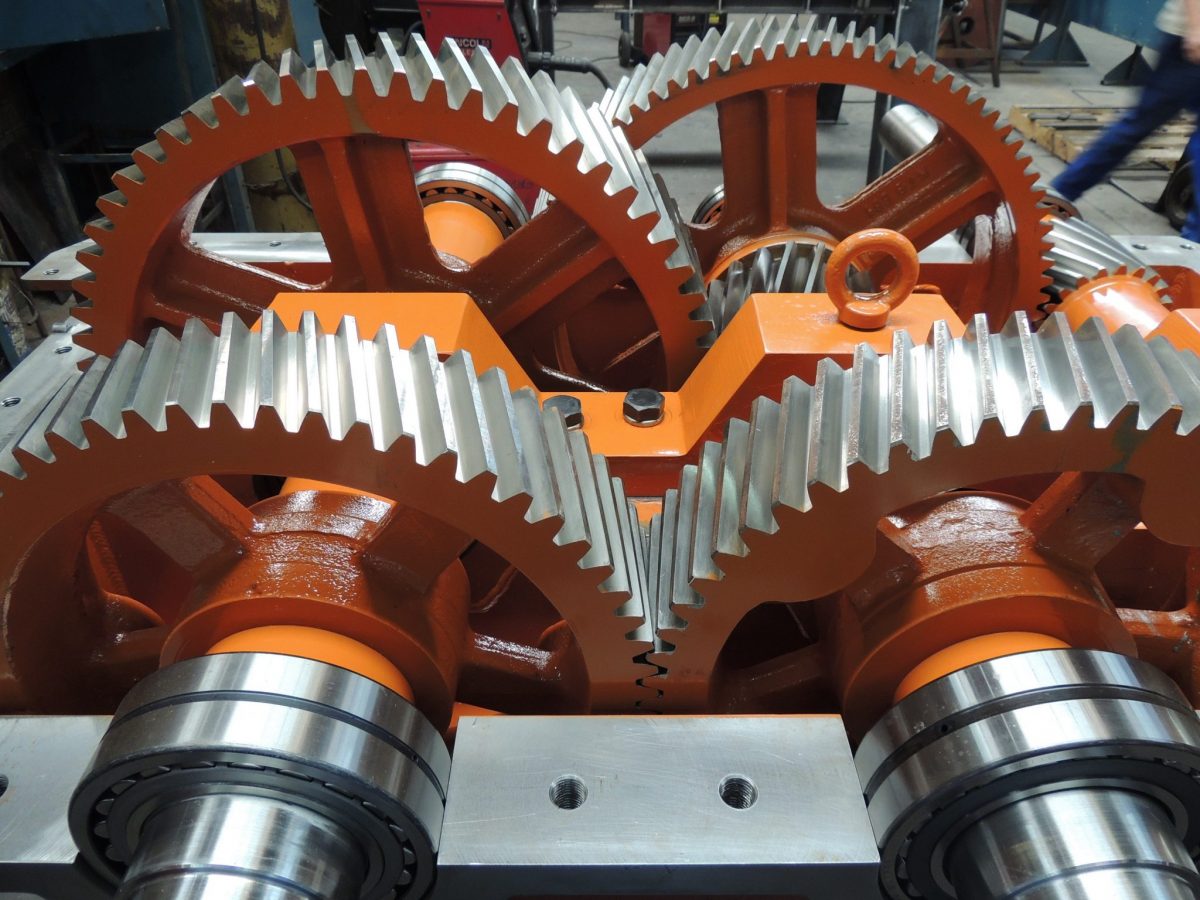

- Bipartite reduction box with alloy steel shafts and bearings for easy maintenance
- Lubrication of gears and bearings by oil bath ensuring system efficiency.
- Main Ø6″ axles in SAE1045 steel and blades with simple maintenance system.

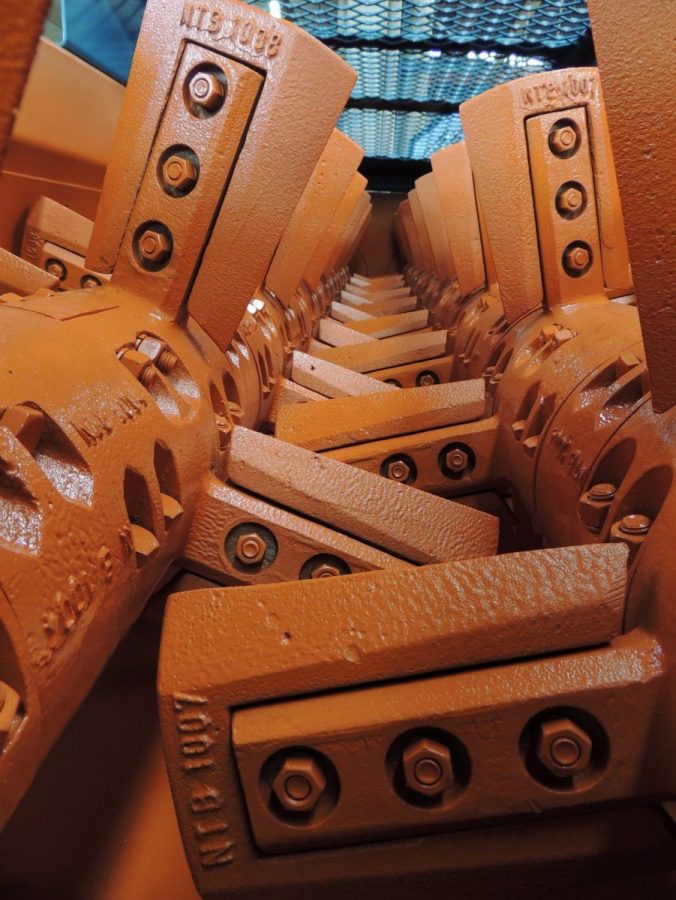

- Chopping blades fixed in tapered bore of the shaft, with tilt adjustment and wear compensation.

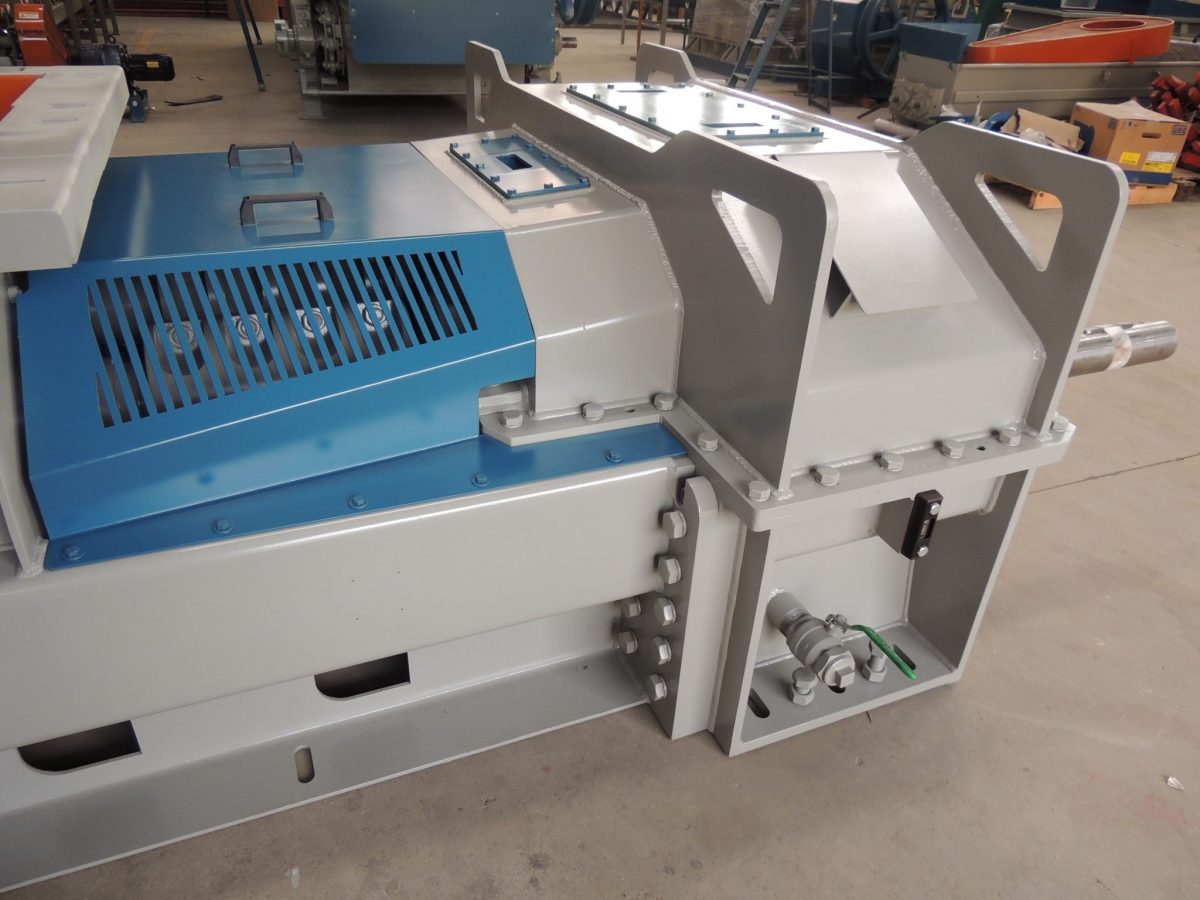

- Bipartite reduction box independent from the mixer trough. It has couplings for easy disassembly and maintenance.
- Easy-to-replace coating bucket when worn.
- Installed humidification system

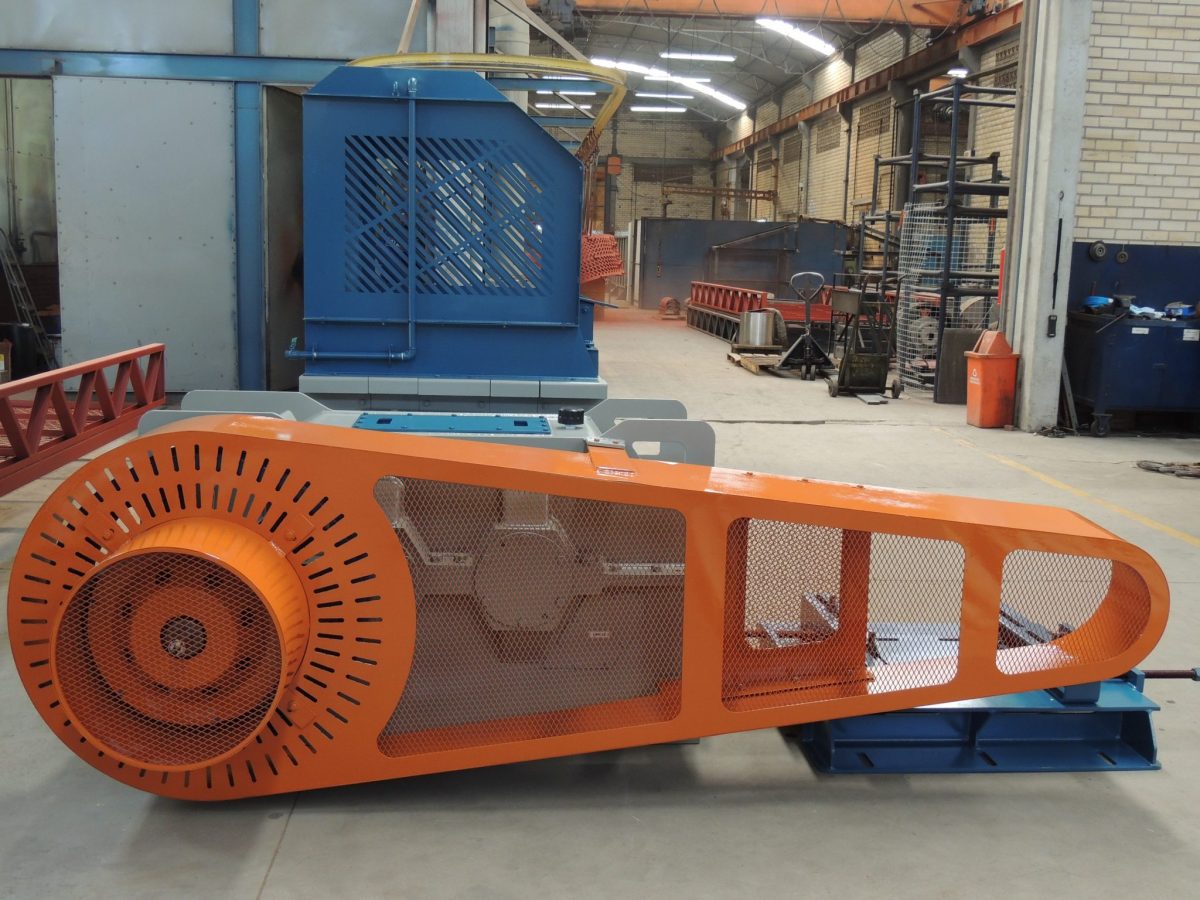

- Simple and smooth electro-pneumatic clutch that eliminates sudden starts that would force the axles.
Dados técnicos
| Imagem | Modelo | Produção | Potência | Dimensões (LxAxC) | Peso Aproximado | Dimensões do Cocho (LxAxC) |
|---|---|---|---|---|---|---|
 | MTR-5 | Até 90 Ton/hora | 125 cv - 1750 rpm | 2500 x 1700 x 5300 mm | 7160 kg | 1000 x 760 x 3500 mm |
