NTB-750 HOMOGENIZER
This machine can be used both in preparing the ceramic mass for resting stock and in the production line. Its function is based on a rotor of hammers that work inside a vat and force the clay to pass through a sieve. The sieve holes are designed according to the characteristics of the clay to be processed. The result is a mass in the form of small cylinders with perfect homogenization of clays and soil, in addition to uniform water distribution in this composition. It also cleans the raw materials by holding plant roots and other vegetable impurities in its sieve.
Características / Detalhes Construtivos

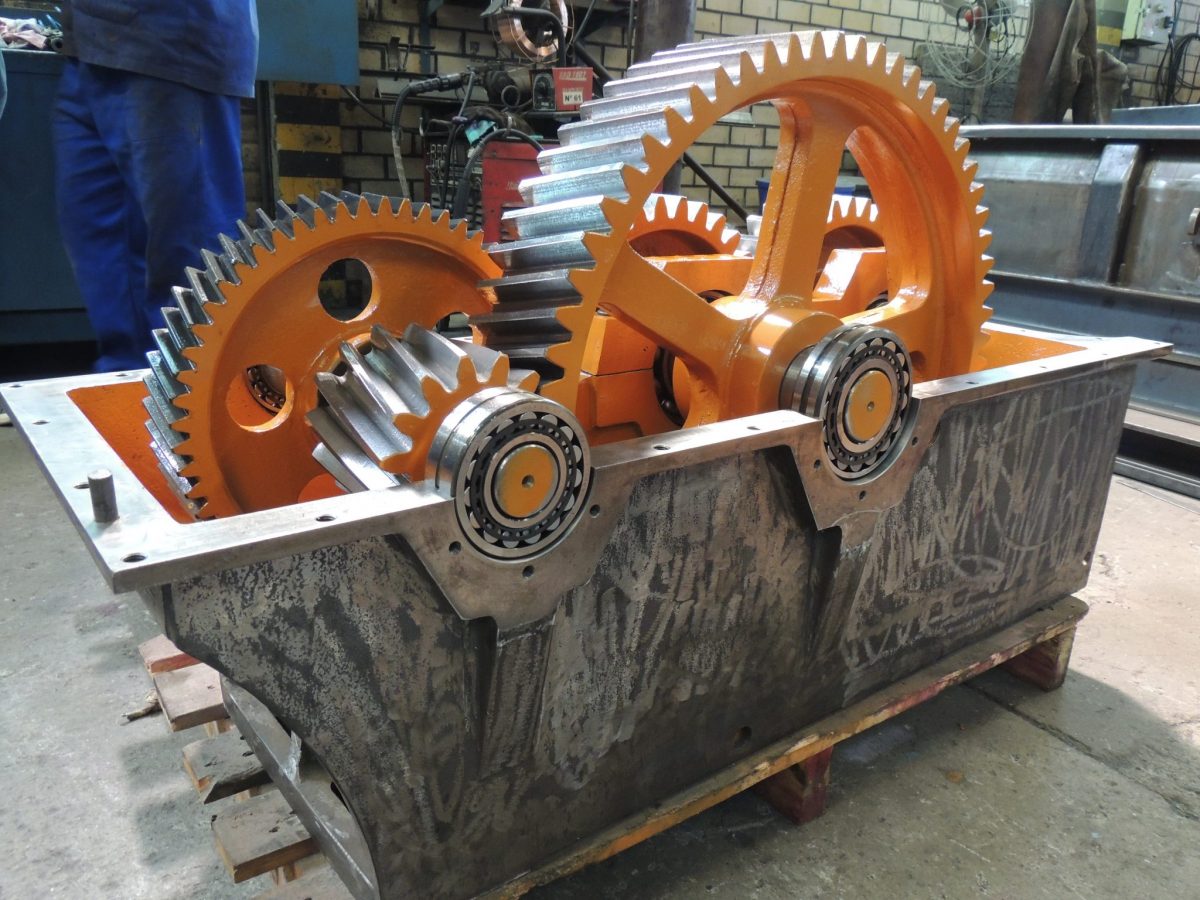

- Helical gear reducer for heat-treated alloy steels.
- High durability and reliability in the gearbox, without noise and perfect alignment.
- The screws and the geometry of the coupling work as a safety fuse, preventing foreign bodies from entering the bowl together with the clay.

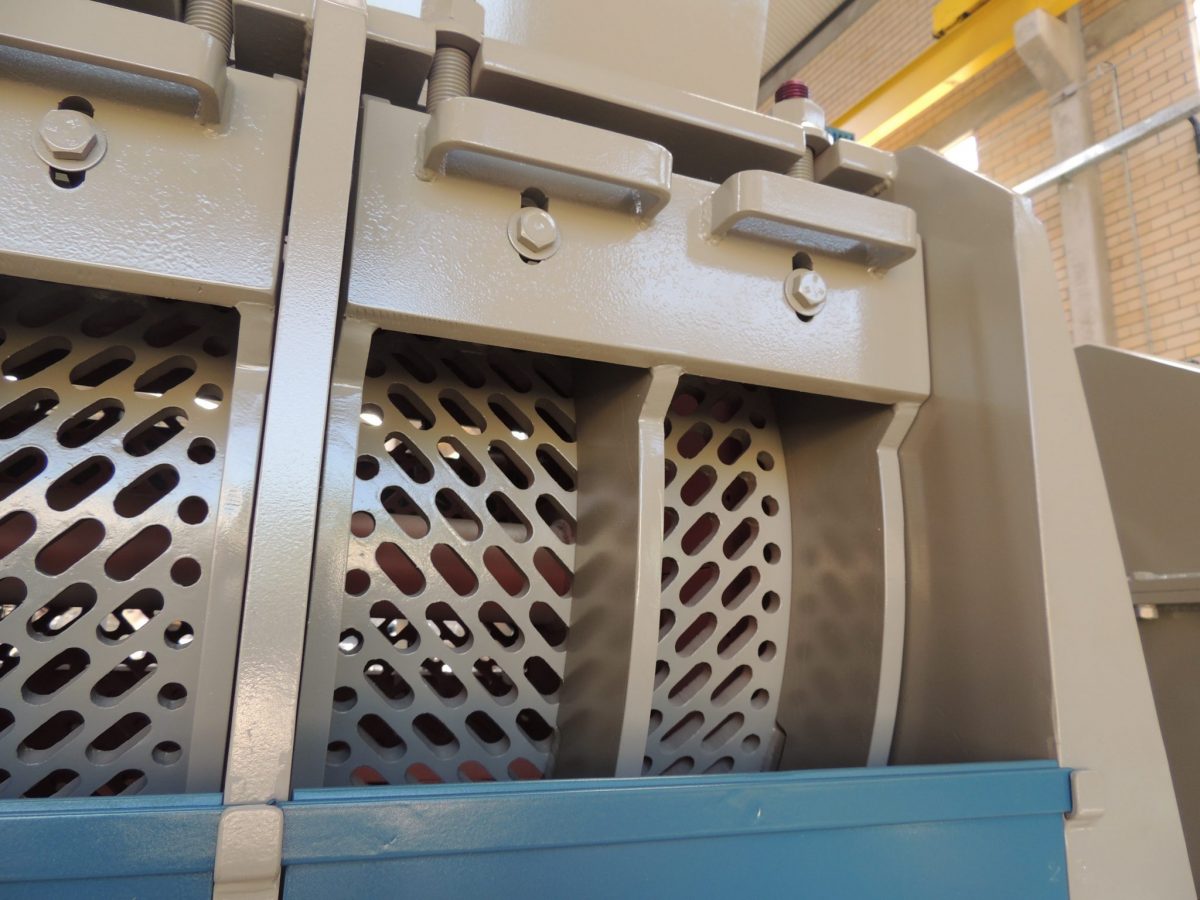

- Easily accessible screens for changing and cleaning.
- High strength, welded and bored sheet metal housing.

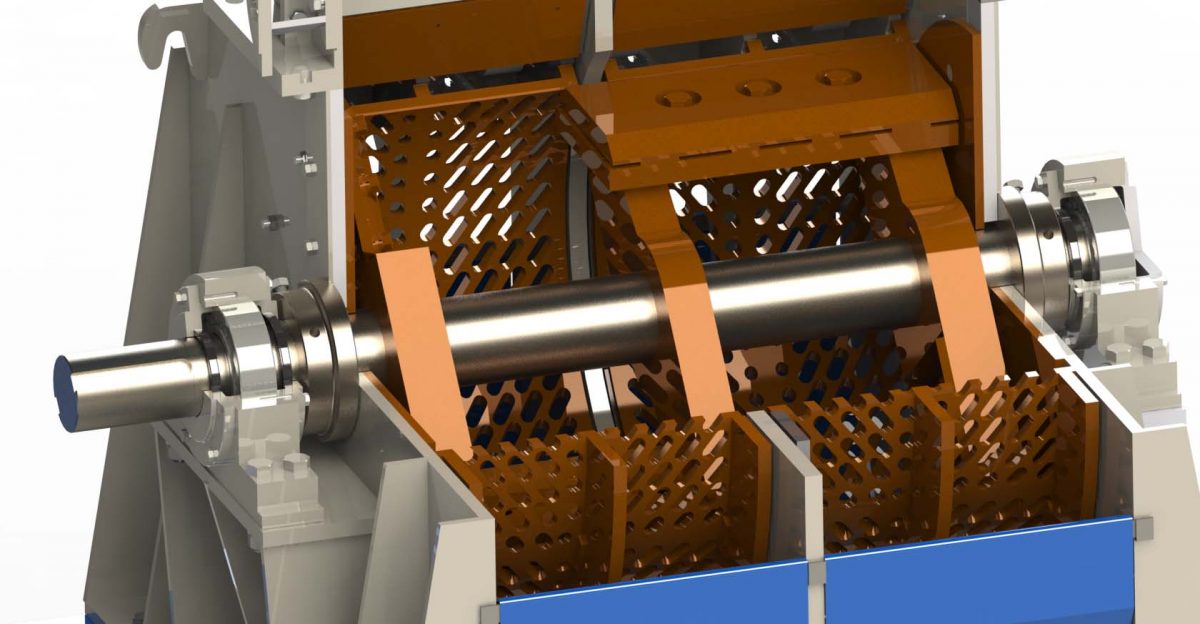

- Central rotor with dimensioned shaft and hammer edges coated with hard weld with high security.
- Coating on the parts exposed to rubbing with clay.

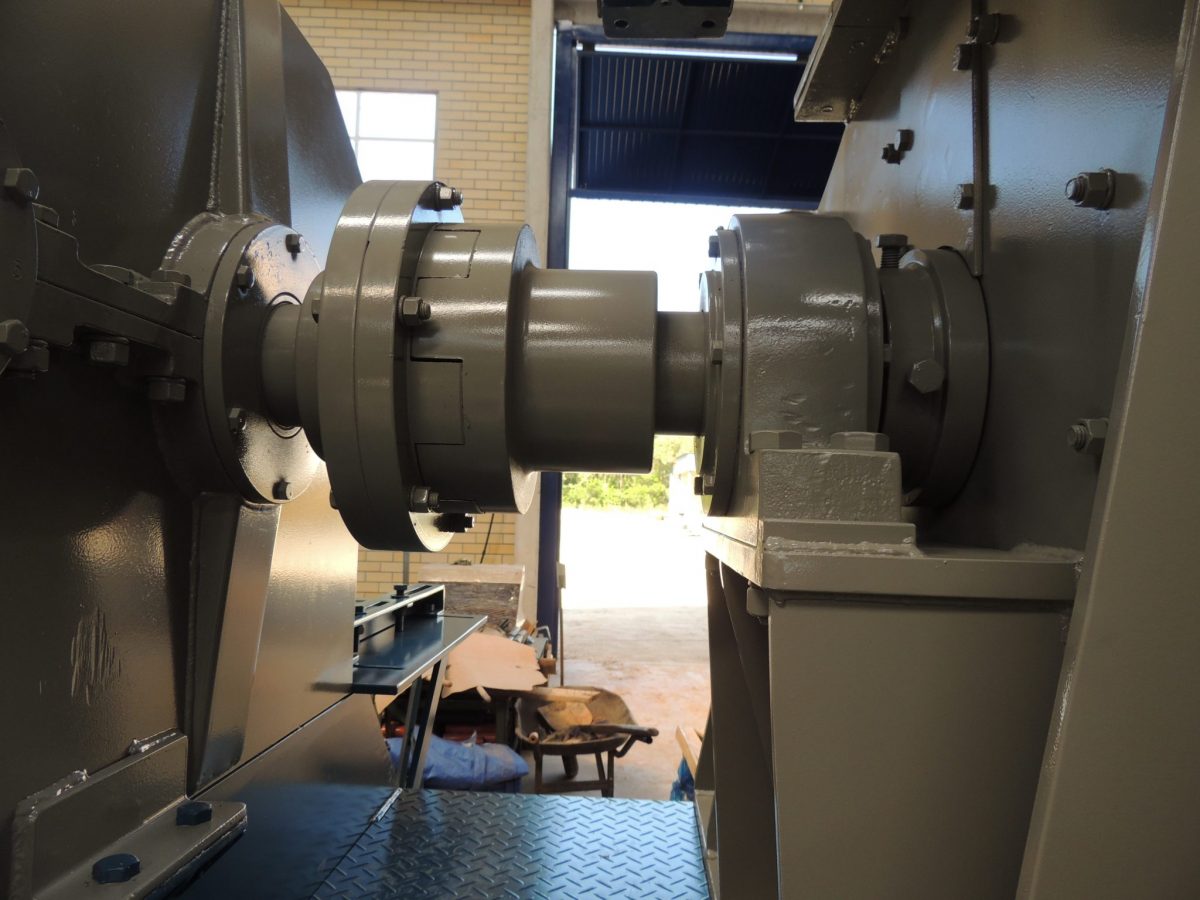

- Pneumatic clutch with smooth activation.
