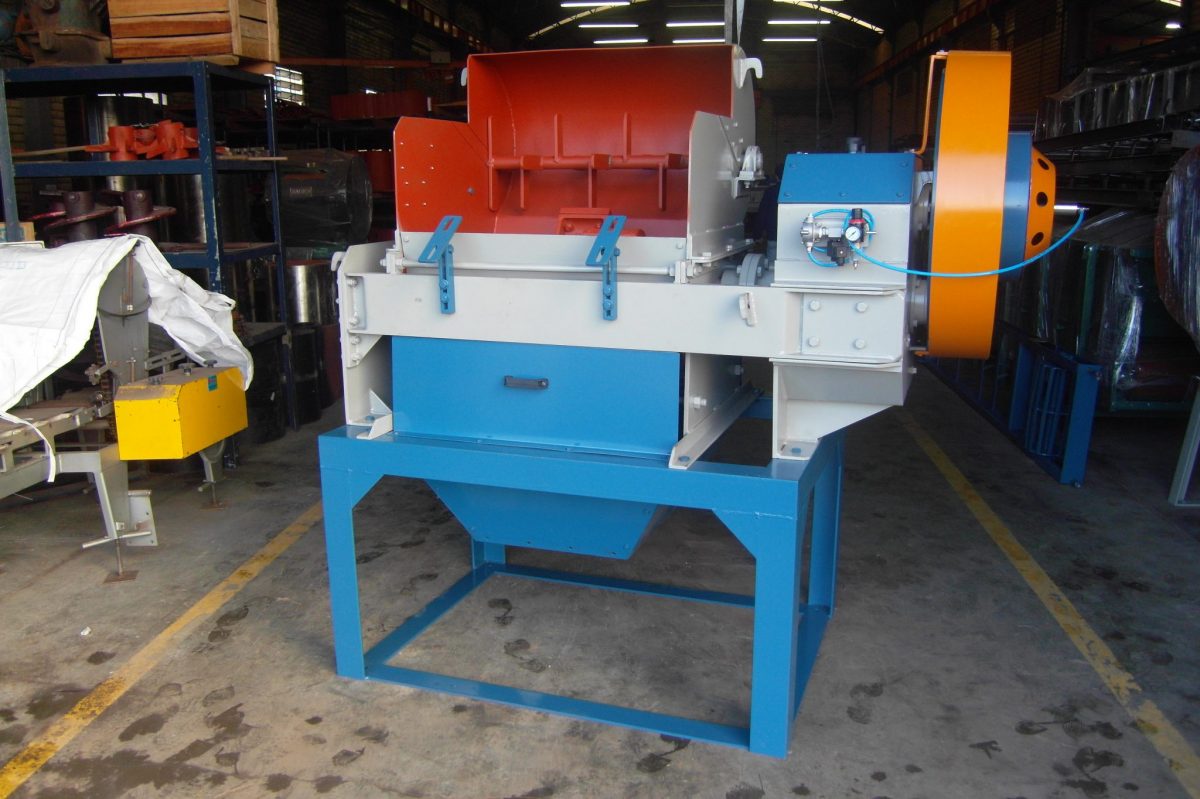

MN-5 B HOMOGENIZER

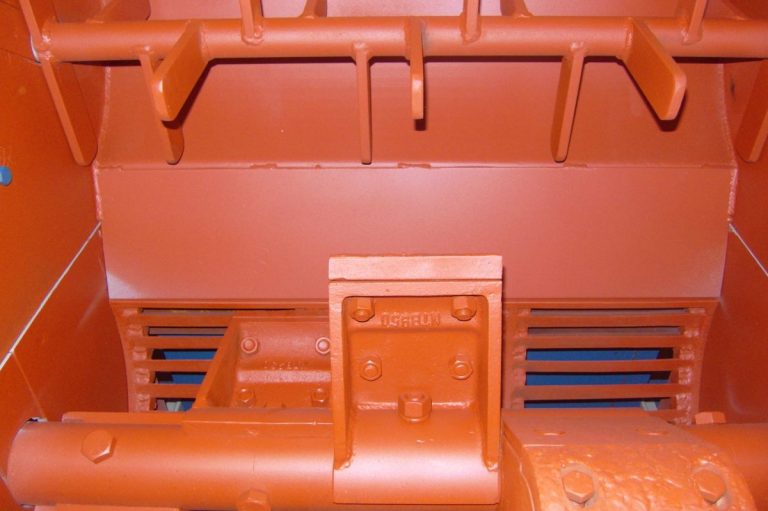

This machine can be used both in the preparation of the ceramic mass for rest and maturation stock and in the production line. It has 4 hammers that force the clay to pass through a sifted sieve. It has helical gear reducer that ensures reduced energy consumption.
Características / Detalhes Construtivos
- Helical gear reducer for heat-treated alloy steels.
- High durability and reliability in the gearbox, without noise and perfect alignment.
- The screws and the geometry of the coupling work as a safety fuse, preventing foreign bodies from entering the bowl together with the clay.
- Easily accessible screens for changing and cleaning.
- High strength, welded and bored sheet metal housing.
- Central rotor with dimensioned shaft and hammer edges coated with hard weld with high security.
- Coating on the parts exposed to rubbing with clay.
- Pneumatic clutch with smooth activation.
Dados técnicos
| Image | Model | Production | Power | Dimensions (WxHxL) | Approximate weight | Rotor Diameter |
|---|---|---|---|---|---|---|
 | MN-5 B | Up to 16 Ton/hour | 30 hp - 1150 rpm | 1785 x 2180 x 2260 mm | 1400 kg | Ø500 mm |
