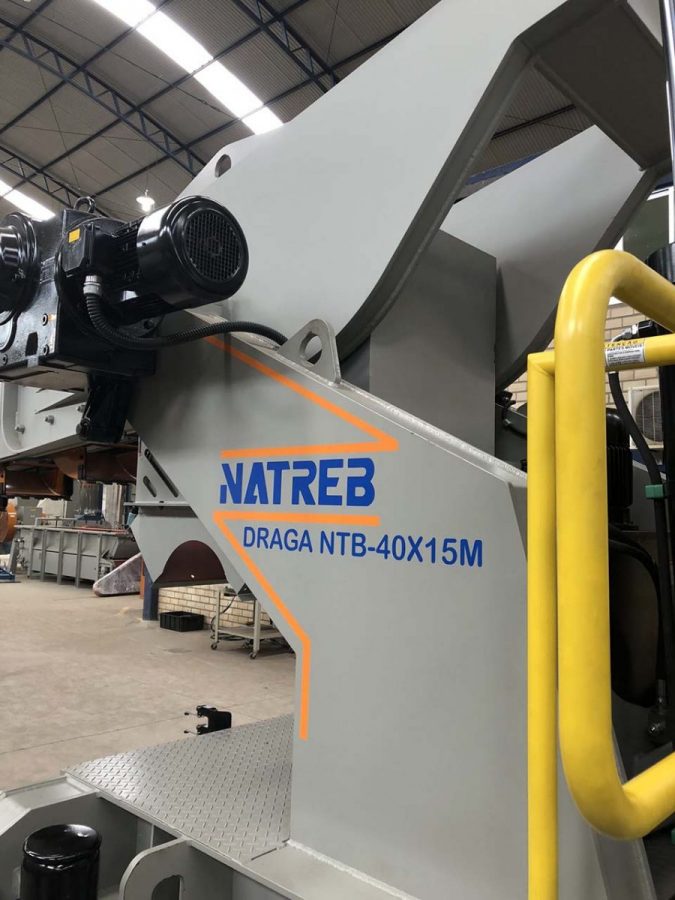

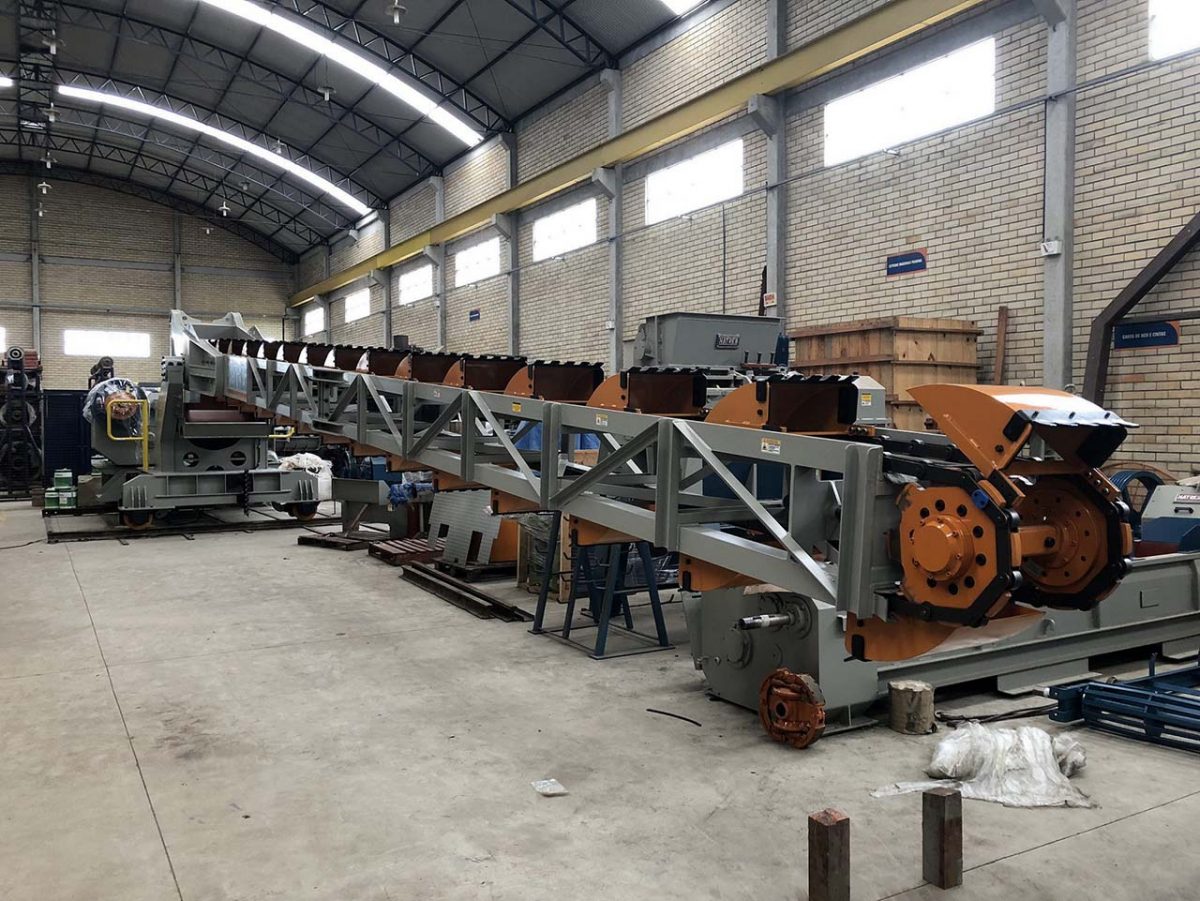

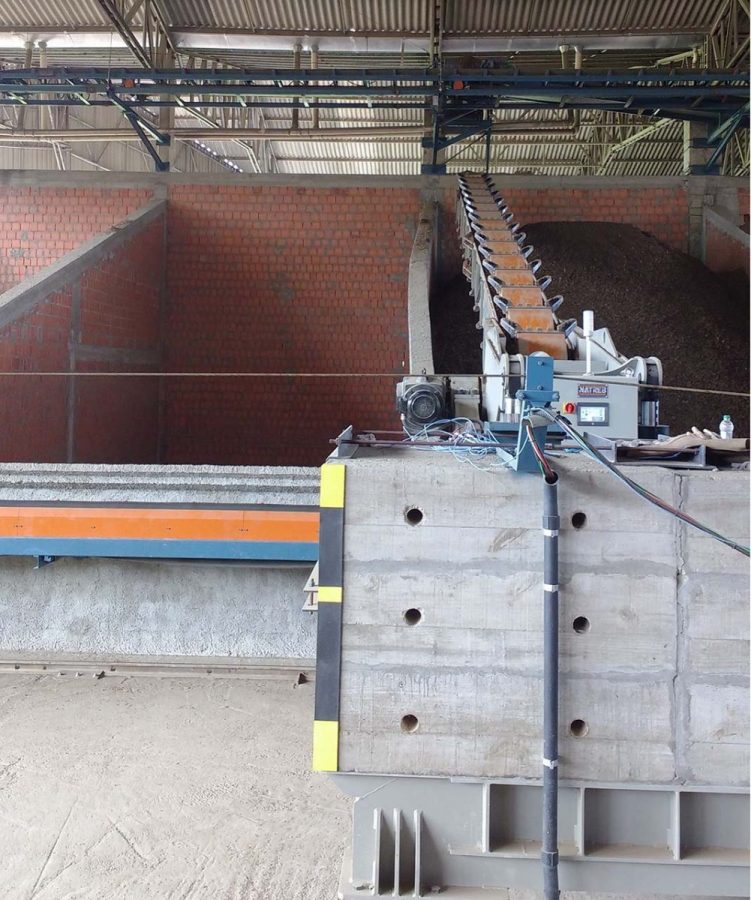

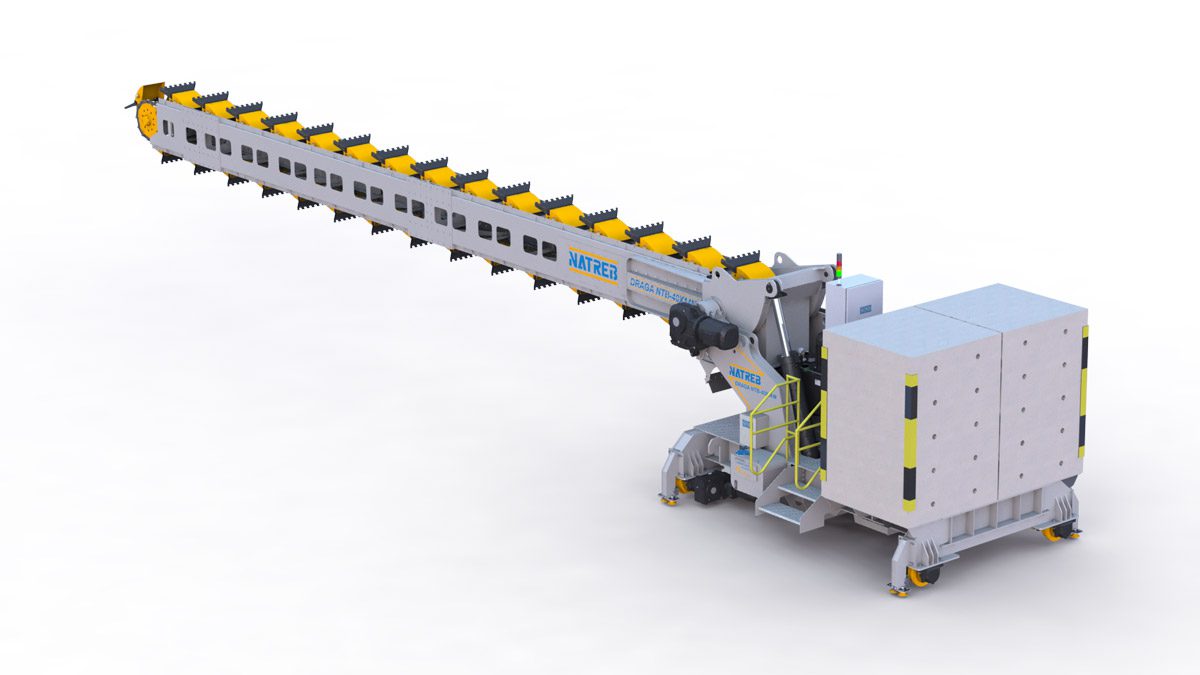

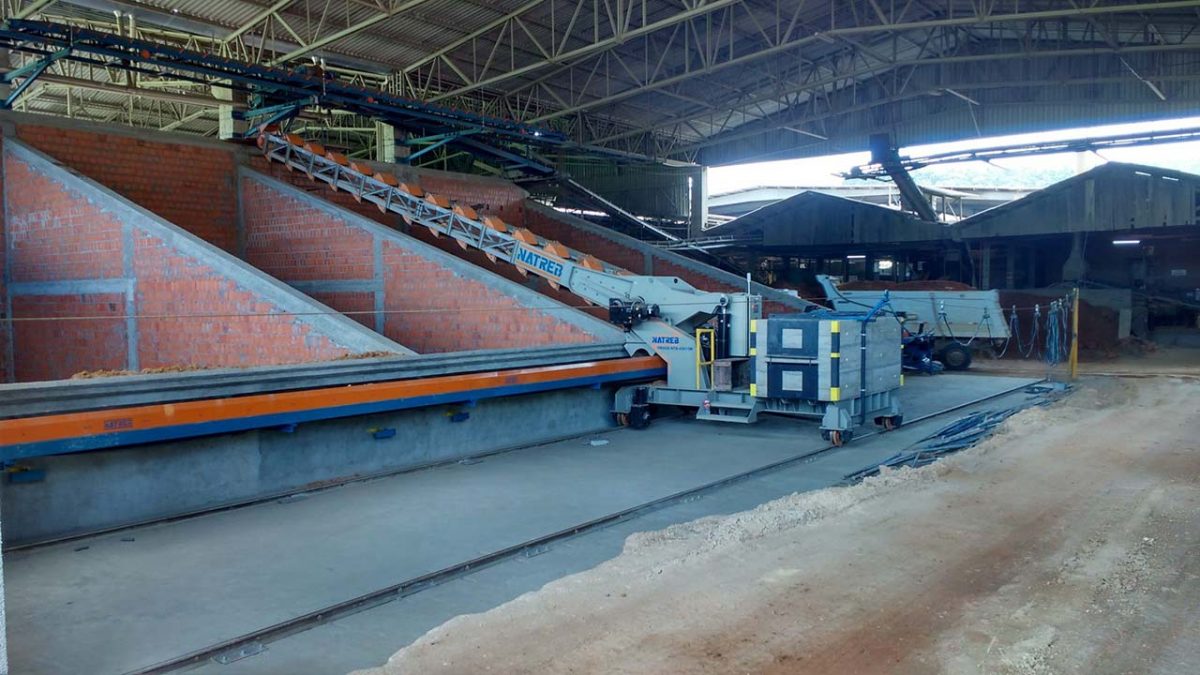

NTB-40X15 DREDGE

Solution to organize and control the clay stock efficiently and economically. The Natreb Dredge guarantees the uniform use of clay, the automation of the process and the elimination of high-cost and polluting movements of the loader. Robust design, with hydraulic drive, movement on rails and fully automated.

Características / Detalhes Construtivos

Cup with a capacity of 0.02 m3.
15 meter arm.
Welded carbon steel structure.
Tilt actuation by two hydraulic pistons.
Adjusting speeds in longitudinal advance (on the rails).
Adjust the speed of the cups.
Steel wheels.
Fixing system for concrete blocks for counterweights (counterweights are up to the customer).
Follow detailed civil construction project.
Follow the power and automation panel.
Follow programming according to logic to be defined with the customer, installation labor and start up.
